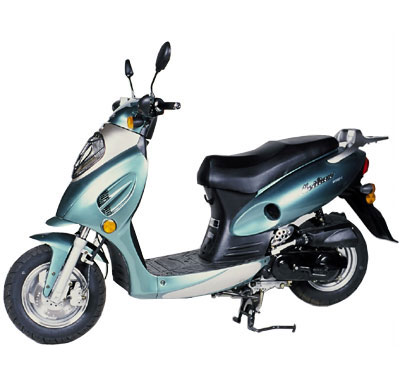

This powerful 2-stroke, air cooled
Enduro scooter offers a smooth ride in four exciting
colors. It's sturdy frame ensures a comfortable ride
for one or two and is guaranteed to turn heads!
|
| Available in January
2004 |
|
| Specifications |
| Dry Weight |
96kg |
| Wheel
Base |
1300mm |
| Ground
Clearance |
150mm |
| Seat Height |
Exterior
Size
|
1890×720×1055 |
| Package
Size |
1710x580x1150
|
| Max Load |
150kg |
| Max Speed |
60km/h |
| Engine
Type |
4-stroke |
| Engine
Model |
LB1P39QMB |
| Carburetor
Model |
MIKUNI |
Piston
Displacement
|
49cc |
| Wheel
Rim Type |
light-alloy/spoke |
| Tire Size |
130
/ 60 - 13 (13" ALLOY WHEEL) |
| Braking
Type |
F:Disk
R:Drum |
Brake
operation (hydraulic/manual)
|
Front:
manual brake / Rear: pedal brake |
Transmission
|
Automatic
CVT V-Belt |
| Chassis
Front Suspension |
Dampened
telescopic coil spring |
| Rear Suspension |
Dampen
coil over shock absorber |
| Compression
Ratio |
10.5:1 |
| Max Power
(in horsepower) |
2.1kW/6000(r/min) |
| Maximum
Torque |
3.0N•m/6000(r/min) |
Battery
|
12V7AH |
| Starting
Mode |
Electric/Kick |
| Ignition
Type |
CDI |
| Nominal
Displacement |
49mL |
| Economic
Fuel Consumption |
Lowest;
n?480g/kW•h |
| Idle Speed |
1500+150r/min |
| Spark
Plug |
AT7C |
| Lubricateing
Oil Type |
15W/40SF |
INSTRUMENTATION
|
Speedometer/Odometer,
Fuel, Oil, High, Low Beam, Turn Signal Indicator
Lamps. |
|
|
Available Colors
|
|
|
|
| |
 |
| |
|
|
|
